Portable Advanced Thermal Imaging Camera
Model: SV-HP6D

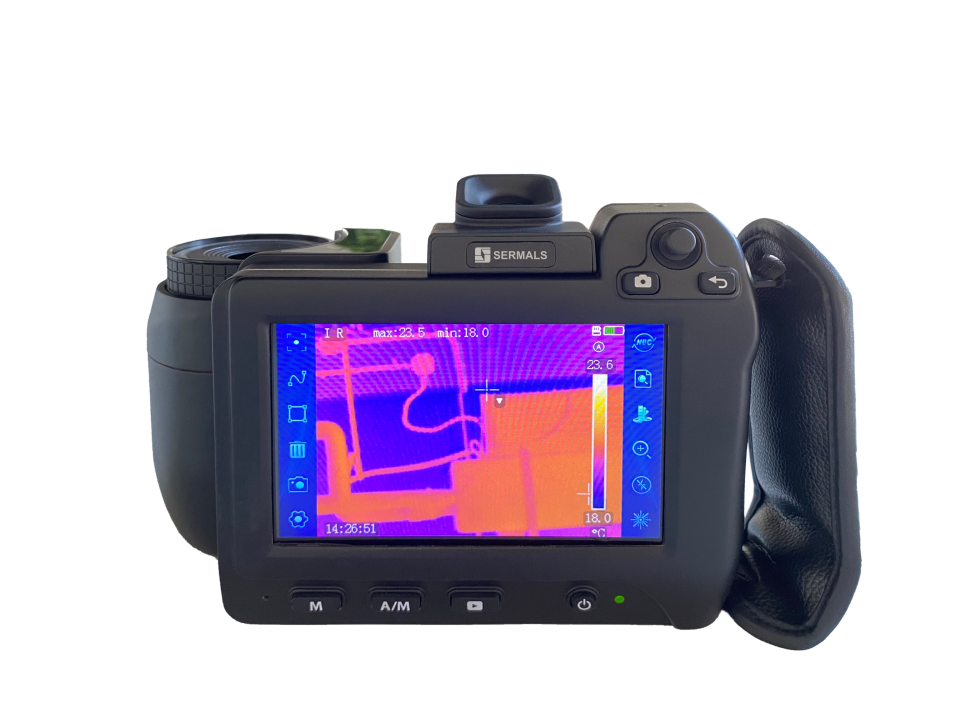

The TherCam SV-HP6D Handheld Advanced Thermal Imaging Camera is equipped with a 640 × 480 thermal resolution detector. Inspectors can survey high-voltage, hazardous targets safely and then quickly diagnose electrical and mechanical failures.
The SV-HP6D’s interchangeable lenses and laser distance meter ensure coverage of near and distant subjects and accurate temperature measurement. This Thermal Imaging Camera is used in a variety of applications such as:
- Power Station Operations
- Industrial inspections
- Petrochemical Engineering
- Electronic Design
- Energy conservation
Excellent Temperature Measurement Performance
The precise high-definition infrared lens system has high resolution and continuous autofocus function, obtaining accurate measurement values even from a long distance.
Wide Temperature Range
Standard temperature measurement range -40℃~650℃ (can be read in -40℃～150℃，150℃～650℃), the range can be customized and extended.
Rich Data Transmission Interface
Standard configuration USB2.0, HDMI, SD card, Bluetooth, WiFi, optional 4G, GPS.
Professional Characteristics
Equipped with programmable buttons, agile graphical user interface, and real-time image enhancement function, it supports various professional features such as one-key capture, autofocus, LED light fill light, and so on.
Portable and Easy to Use
5 inch TFT touch screen + OLED display, the screen can be rotated 180°, any target can be placed in a comfortable visual range.
|
|
SV-HP3D |
SV-HP6D |
|
Detector Resolution |
384 × 288 pixels |
640 × 480 pixels |
|
Thermal Sensitivity/NETD |
< 50mk(@30°C,F#=1.0) |
< 40mk(@30°C,F#=1.0) |
|
Accuracy |
±2°C or ±2% of reading |
±2°C or ±2% of reading |
|
Digital Camera |
5 MP, with built-in LED photo/video lamp |
|
|
Display |
5'', 800*480 pixel TFT touch screen + OLED display |
|
|
Storage Media |
Standard 32G Micro SD card, expandable |
|
|
Display Technology |
IPS |
|
Display Screen |
5 inch OLED screen |
|
Touchscreen |
Capacitive touch screen |
|
Image Mode |
Visible light, thermal imaging, picture-in-picture, image fusion |
|
Color Palettes |
10 false colors such as Iron red/grayscale/anti-iron red/anti-grayscale etc. |
|
Digital Zoom |
×1、×2、×4、×8 |
|
Isothermal Line |
Yes |
|
Temperature Difference |
Each temperature measuring frame automatically temperature difference calculate |
|
Storage Card |
32 G high-speed SD card (can store more than 4000 infrared pictures) |
|
Video Recording |
H.264 format video recording |
|
Infrared image format |
jpg (including full temperature data)/ png (including full temperature data) |
|
Visiable image format |
jpg/png |
|
Image Library |
Yes |
|
Text |
Predefined list or touchscreen keyboard |
|
Voice |
Recording added to still images |
|
Accuracy |
±2℃ or ±2% of the reading |
|
Range |
-20°C~150°C、0°C ~650°C（ can be extended to 2000℃） |
|
Intelligent Range |
Yes |
|
Emissivity Correction |
0.01-1, custom input and material table selection |
|
Temperature Correction |
Atmospheric transmittance, optical correction, ambient temperature and humidity, automatic target distance correction |
|
High temperature alarm |
High temperature abnormal alarm |
|
Temperature measurement model |
Global high and low temperature, average temperature tracking. Point, line, and frame temperature measurement, 10 points, 5 regions, and 5 lines measure simultaneously. |
|
4G |
Real-time remote images streaming to mobile phones/computers via 4G |
|
GPS |
Automatic image tagging |
|
Bluetooth |
Yes |
|
WIFI |
Yes |
|
HDMI |
Real-time video streaming via Micro HDMI |
|
Encapsulation |
IP54 |
|
Operating Temperature |
-20°C～+50°C |
|
Operating Humidity |
0-95% |
|
Storage Temperature |
-40°C～70°C |
|
Shock/vibration resistance |
25g,IEC68-2-29 / 25g,IEC68-2-6 |
|
Charge Mode |
Two-places Charger or 12V Car Charger |
|
Battery Type |
Detachable Rechargeable Li-ion battery |
|
Battery life |
>4h at 25°C ambient temperature and typical use |
|
External Power Management |
USB 2.0 A to USB Type-C with Power Supply |
|
Power Consumption |
5W |
|
Size (L x W x H) |
192x 125 x85mm |
|
Weight |
≤1.2Kg（incl battery） |
|
Housing Material |
TPE coated PCABS, Magnesium Alloy |
