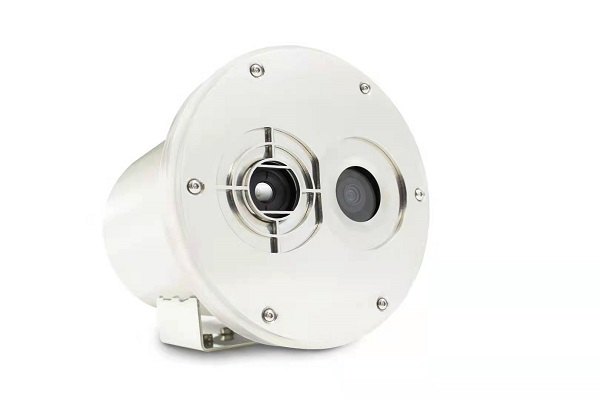

Multispectral Temperature Detection Camera (EX)
Model: SV-T23D-EX
The TherCam SV-T23D-EX Dual-Spectrum Temperature Detection is a go-to option for capturing video in any light conditions. Whether you need it for monitoring complete darkness or glaring sunlight, TherCam has you covered. This Dual-Spectrum Temperature Detection Camera even works in extreme weather, smoke, and fog.
This Dual-Spectrum Camera helps to provide full situational awareness for a variety of applications, including:
- Emergency Services
- Law Enforcement
- Military
- Maritime Port Security
- Equipment Monitoring
Temperature Measurement
High-quality target surface uniformity, high-temperature measurement accuracy; accurate temperature measurement even in complex environments, with an accuracy of ±2°C or ±2% of reading; automatic tracking of the highest and lowest temperature on the entire screen, supporting temperature measurement mode like points, lines, frames, etc.
Clear Thermal Image
Support a region-independent pseudo color; Image processing technologies, such as super-resolution and image detail enhancement technology, can significantly enhance the details of target objects in complex scenes and output unparalleled high-quality clear thermal images.
Dual-light fusion
Combine the visible light image and the infrared image into one, and display the temperature difference and temperature value of the scene in the form of an infrared image, and the image details are precise. It solves the problem that the details of a single infrared image are blurred, and the defect location is unobstructed, dramatically improving work efficiency.
Super Protection
316L stainless steel shell, explosion-proof certification, explosion-proof mark Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃, TVS 6000V lightning protection, anti-surge, in line with GB/T17626.5 level four standards.
| Detector Type | Uncooled Detector |
| Detector Resolution | 384 × 288 |
| Spectral Range | 8~14μm |
| Detector Pitch | 17μm |
| Focal Length | 4/7mm/15mm |
| IFOV | 4.2/2.4mrad/1.1mrad |
| FOV | 94° x70°/53° x40°/25°x19° |
| NETD | < 50mk(@30°C,F#=1.0) |
| Focus | Athermal fixed focus |
| Color Palettes | Ten false colors such as white hot, black hot, iron red, etc |
| Independent pseudo color | One region independent pseudo color support |
| Image Adjestment | Support up and down, left and right, center mirroring |
| 3D noise reduction | Yes |
| Image Enhancement | Yes |
| Resolution | 1920x1080 |
| Image Sensor | 2 Mega 1/1.8” CMOS |
| Lens | 4.8-120mm，25 X Optical Zoom |
| Minimum illumination | Color :0.05Lux(F1.6，AGC ON)；Black-white：0.01Lux @ (F1.6，AGC ON) |
| Automatic Control | Auto white balance, auto gain, auto exposure |
| Backlight compensation | On/Off |
| Accuracy | ±2℃ or ±2% of the reading |
| Range | -20°C~150°C、0°C ~550°C |
| High-temperature alarm | High-temperature abnormal alarm |
| Temperature measurement model | Global high and low & average temperature tracking. Point, line, and frame temperature measurement Support, max 20 regions |
| Temperature difference comparison | Comparison alarm of temperature difference in different areas |
| Dual light fusion | Yes |
| Picture-in-Picture | Yes |
| Digital Zoom | ×1、×2、×4 |
| Temperature difference comparison | Temperature difference comparison in different areas |
| Photos and Videos | Photos、Videos and Records export |
| Temperature Curve | Automatically generate temperature curves for different temperature measurement areas |
| Network Interface | 10M/100M/1000M adaptive |
| Alarm | Switch 1/0, 1 in/0 out |
| Analog video output | Yes, PAL/NTSC configurable |
| RS485 | Yes, Pelco-D protocol control PTZ, RS485 data network-transparent transmission |
| Transport Protocol | SUPPORT Software integrated open API, Standard protocols (ONVIF), Modbus protocol access, SDK (Win & Linux), and third-party management platform access Modbus TCP to transmit temperature information or radiation data |
| RESET | Support one-key reset |
| Encapsulation | IP66, TVS 3000V lightning protection, anti-surge |
| Operating Temperature | -20°C～+50°C |
| Operating Humidity | 0-90% |
| Storage Temperature | -40°C～80°C |
| Power Consumption | 3W |
| Input Voltage | DC12V |
| Size (L x W x H) | 214×111.2×90mm（L×W×H） |
| Weight | ≤1Kg |
| Housing Material | Aluminum Magnesium Alloy |
