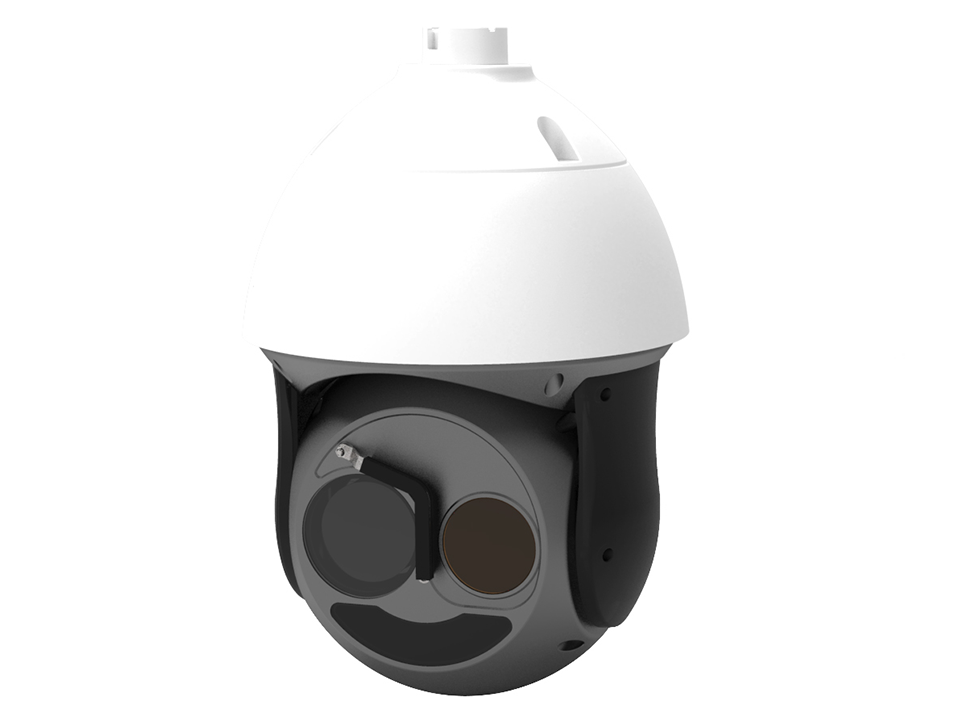

Multispectral PTZ Thermal Camera
Model: SV-T43D
The TherCam SV-T43D Dual-Spectrum Dome Thermal Imaging Camera is a go-to option for capturing video in any light conditions. Whether you need it for monitoring complete darkness or glaring sunlight, TherCam has you covered. The Dual-Spectrum Dome Thermal Imaging Camera even works in extreme weather, smoke, and fog.
This Dual-Spectrum Dome Thermal Imaging Camera helps to provide full situational awareness and perimeter protection. Plus, it is built to withstand harsh environments. This Dual-Spectrum Thermal Camera has been used in a variety of applications, including:
- Emergency Services
- Law Enforcement
- Military
- Maritime Port Security
- Equipment Monitoring
Temperature Measurement
Front-end temperature measurement and total temperature data stream output; high-quality target surface uniformity, high-temperature measurement accuracy; Accurate temperature measurement even in complex environments, accuracy ±2℃ or ±2% of reading; full screen highest and lowest temperature automatic tracking, multiple temperature measurement modes support, such as point, line, frame, etc.
Clear Thermal Image
Support a region-independent pseudo color; Image processing technologies, such as super-resolution and image detail enhancement technology, can significantly enhance the details of target objects in complex scenes and output unparalleled high-quality clear thermal images.
PTZ Function
Horizontal 360° continuous rotation, vertical -3°~+93°, horizontal rotation speed 0.5°~150°/s, vertical rotation speed 0.5°~100°/s, 256 preset points can be set, Supports obtaining the horizontal angle and pitch angle data through commands. It can achieve full coverage of the area and no monitoring blind spots.
Safe and Reliable
All-metal arc-shaped shell, large heat dissipation area, exquisite device design; encapsulation IP66, TVS 3000V lightning protection, surge protection, meet with GB/T17626.5 level four standards
| Detector Type | Uncooled Detector |
| Detector Resolution | 384 × 288 |
| Spectral Range | 8~14μm |
| Detector Pitch | 17μm |
| Focal Length | 4/7mm/15mm |
| IFOV | 4.2/2.4mrad/1.1mrad |
| FOV | 94° x70°/53° x40°/25°x19° |
| NETD | < 50mk(@30°C,F#=1.0) |
| Focus | Athermal fixed focus |
| Color Palettes | Ten false colors such as white hot, black hot, iron red, etc |
| Independent pseudo color | One region independent pseudo color support |
| Image Adjestment | Support up and down, left and right, center mirroring |
| 3D noise reduction | Yes |
| Image Enhancement | Yes |
| Resolution | 1920x1080 |
| Image Sensor | 2 Mega 1/1.8” CMOS |
| Lens | 4.8-120mm，25 X Optical Zoom |
| Minimum illumination | Color :0.05Lux(F1.6，AGC ON)；Black-white：0.01Lux @ (F1.6，AGC ON) |
| Automatic Control | Auto white balance, auto gain, auto exposure |
| Backlight compensation | On/Off |
| PTZ Attitude Data | Obtain PTZ level and pitch angle data through commands |
| Horizontal Rotation Angle | 0°~360° continuous rotation |
| Vertical Rotation Angle | Manipulation speed 200°/s，Manual 0.5°～100°/s |
| Horizontal Rotation Speed | -3°～+93° |
| Vertical Rotation Speed | Manipulation speed 200°/s，Manual 0.5°～100°/s |
| Preset position accuracy | ±0.05° |
| Preset Points Number | 256 |
| Auto-Flip | Vertical 96° automatic flip, continuous monitoring |
| Communication Interfaces | RS485 supports angle query return (optional RS422, real-time return) |
| Scan | preset point/pattern scan/cruise scan/automatic scan/vertical scan/random scan/frame scan/panoramic scan |
| Accuracy | ±2℃ or ±2% of reading |
| Range | -20°C~150°C、0°C ~550°C |
| High-temperature alarm | High-temperature abnormal alarm |
| Temperature measurement model | Global high and low & average temperature tracking. Point, line, and frame temperature measurement Support, max 20 regions |
| Temperature difference comparison | Comparison alarm of temperature difference in different areas |
| Dual light fusion | Yes |
| Picture-in-Picture | Yes |
| Digital Zoom | ×1、×2、×4 |
| Temperature difference comparison | Temperature difference comparison in different areas |
| Photos and Videos | Photos、Videos and Records export |
| Temperature Curve | Automatically generate temperature curves for different temperature measurement areas |
| Network Interface | 10M/100M/1000M adaptive |
| Alarm | Switch 1/0, 1 in/0 out |
| Analog video output | Yes, PAL/NTSC configurable |
| RS485 | Yes, Pelco-D protocol control PTZ, RS485 data network-transparent transmission |
| Transport Protocol | SUPPORT Software integrated open API, Standard protocols (ONVIF), Modbus protocol access, SDK (Win & Linux), and third-party management platform access Modbus TCP to transmit temperature information or radiation data |
| RESET | Support one-key reset |
| Encapsulation | IP66, TVS 3000V lightning protection, anti-surge |
| Operating Temperature | -20°C～+60°C |
| Operating Humidity | 0-90% |
| Storage Temperature | -40°C～80°C |
| Power Consumption | 50W（MAX） |
| Input Voltage | AC24V±4V |
| Size (L x W x H) | 311.5×213×151mm（L×W×H） |
| Weight | ≤4.5Kg |
| Housing Material | Aluminum Magnesium Alloy |
