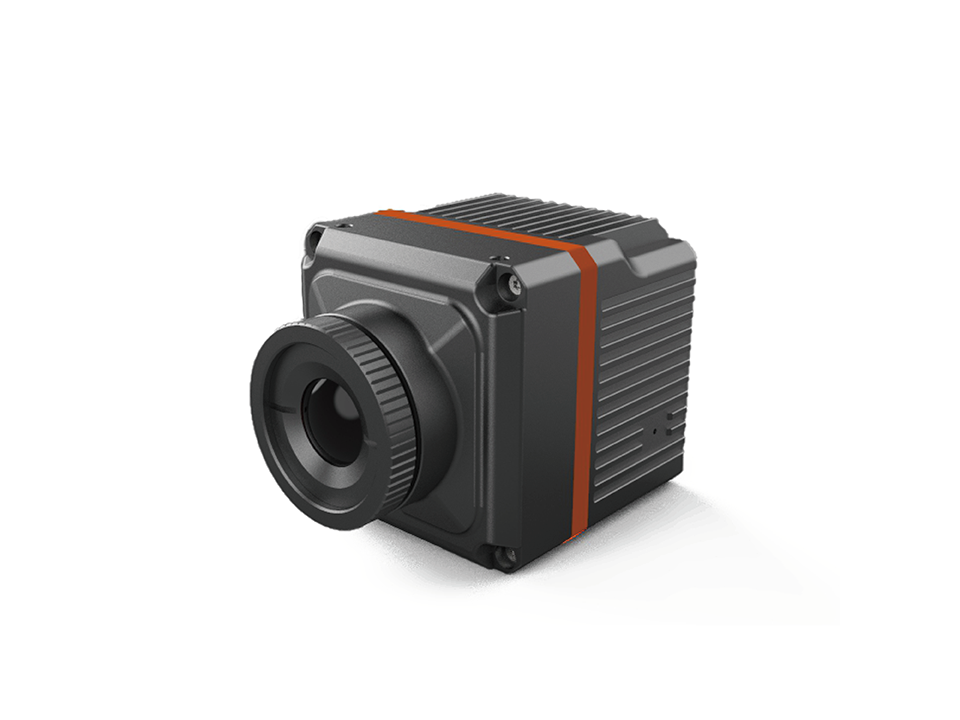

Industrial Use Thermal Camera Core
Model: SV-TA
TherCam SV-TA Industrial-Use Thermal Camera Core is a non-contact, real-time, continuous temperature measurement camera core for detecting the temperature change of industrial equipment. Combined with our software, it can be used for fault detection, industrial process control, and equipment maintenance.
TherCam SV-TA can be used in a variety of applications including, but not limited to:
- Solid Waste Management
- Rotary Kiln Processes
- Hazardous Waste Management
- Hazardous Chemical Storage
- Coal Mining
- Developmental Drilling (Petroleum, etc.)
- Petrochemicals Processing
- Power Monitoring
High sensitivity detector
Lynred uncooled detector, pitch 17um, resolution 384×288, high sensitivity, and fast response.
Temperature Measurement
Front-end temperature measurement and total temperature data stream output; high-quality target surface uniformity, high-temperature measurement accuracy; accurate temperature measurement even in complex environments, accuracy ±2℃ or ±2% of reading; full screen highest and lowest temperature automatic tracking, multiple temperature measurement modes support, such as point, line, and frame.
Clear Thermal Image
Support a region-independent pseudo color; Image processing technologies, such as super-resolution and image detail enhancement technology, can significantly enhance the details of target objects in complex scenes and output unparalleled high-quality clear thermal images.
Compact structure and easy to integrate
Rich interfaces, support multiple protocols (ONVIF, RTSP, GB/28181, Modbus, Modbus TCP); support SDK (Win & Linux) and third-party management platform access; compact structure camera core, small size, low power consumption, easy integration, stable performance.
| Detector Type | Uncooled Detector |
| Detector Resolution | 384 x 288 |
| Spectral Range | 8~14μm |
| Detector Pitch | 17μm |
| Focal Length | 4/7mm/15mm |
| IFOV | 4.2/2.4mrad/1.1mrad |
| FOV | 94° x70°/53° x40°/25°x19° |
| NETD | < 50mk(@30°C,F#=1.0) |
| Focus | Athermal fixed focus |
| Color Palettes | 10 false colors such as white hot, black hot, iron red, etc |
| Image Frequency | 30Hz |
| Independent pseudo color | One region independent pseudo color support |
| Image Adjustment | Support up and down, left and right, center mirroring |
| Digital Zoom | ×1、×2、×4 |
| Video Coding | H.264 |
| 3D Noise Reduction | Yes |
| Image Enhancement | Yes |
| Set-up time | ≤45s |
| Accuracy | ±2℃ or ±2% of the reading |
| Range | -20°C~150°C、0°C ~450°C(can be extended to 2000°C) |
| High-temperature alarm | High-temperature abnormal alarm |
| Temperature measurement model | Global high and low & average temperature tracking. Point, line, and frame temperature measurement Support, max 20 regions |
| Network Interface | 10M/100M/1000M adaptive |
| Alarm | Switch 1/0, 1 in/0 out |
| Analog Video Output | Yes, PAL/NTSC configurable |
| RS485 | Yes, Pelco-D protocol control PTZ, RS485 data network-transparent transmission |
| Transport Protocol | SUPPORT Software integrated open API, Standard protocols (ONVIF), Modbus protocol access, SDK (Win & Linux), and third-party management platform access Modbus TCP to transmit temperature information or radiation data |
| RESET | Support one-key reset |
| Encapsulation | IP45 |
| Operating Temperature | -40°C～60°C |
| Operating Humidity | 0-90% |
| Storage Temperature | -40°C～80°C |
| Power Consumption | 2.5W (MAX） |
| Input Voltage | DC 5V-24V wide voltage |
| Size (L x W x H) | 56× 45.5 ×47 mm（L×W×H, without lens |
| Weight | 120g (without lens) |
| Installation | 4 M3 threaded ports (bottom) |
| Housing Material | Aluminum Magnesium Alloy |
