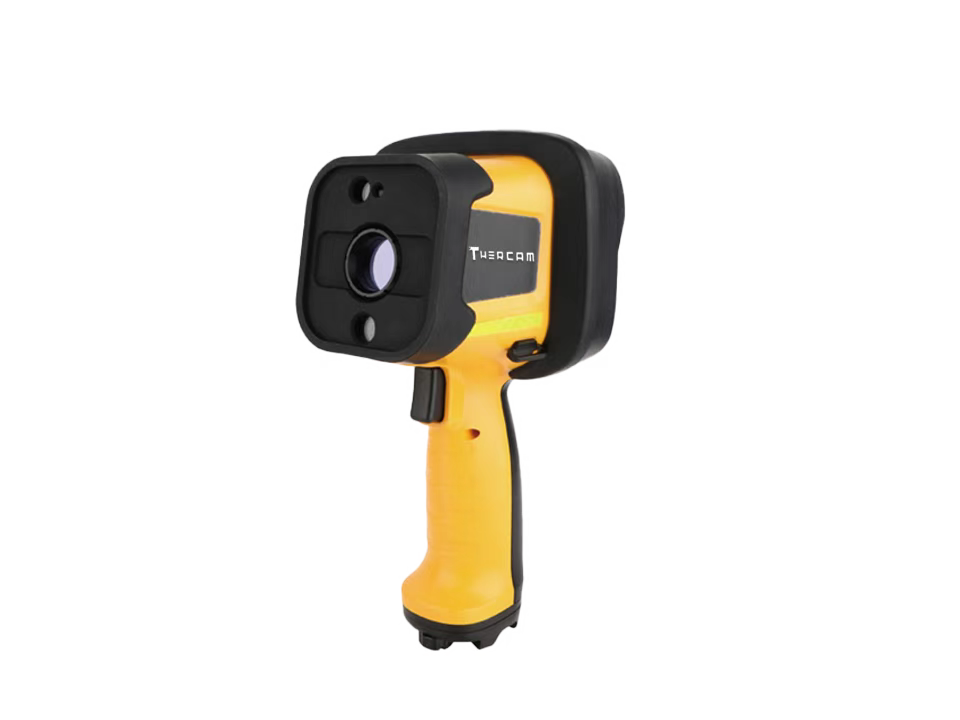

Handheld Thermal Imaging Cameras for Firefighting

Model: SV-HF3S

The TherCam SV-HF3S Handheld Thermal Imaging Camera is vital for fire and rescue missions. This Camera is packed with advanced features, developed for extreme environments, and designed ergonomically for comfort and ease of use.

Kay Features

Temperature Measurement
High-temperature measurement accuracy, ±2℃ or ±2% of reading; high-quality target surface uniformity, full-pixel temperature measurement accuracy; full-screen automatic positioning and tracking of the highest temperature and lowest temperature.

Ultra-wide temperature measurement range
20°C~150°C (low-temperature range), 0°C~410°C (medium temperature range), 300°C~2000°C (high-temperature range), supports automatic switching of three temperature measurement ranges, select freely.

Clear Thermal Image
Image processing technologies, such as super-resolution technology and image detail enhancement technology, can greatly enhance the details of target objects in complex scenes and output unparalleled high-quality clear thermal images.

Storage
32Gb high-speed flash memory card can store more than 4000 infrared images (.jpg) and 16 hours of video files, which can be played back and analyzed on a computer.

High-temperature resistance
Alumina and PPSU silicone rubber materials, high-temperature resistance, can adapt to the high-temperature working environment of 260 ℃.

More Reliable
Encapsulation IP67, 1 meters drop resistance, detachable rechargeable explosion-proof lithium battery, fully compliant with the requirements of GA/T 635-2006 national standard; suitable for various harsh environments, and can help firefighters navigate easily in a dense smoke environment.

Imaging & Optical

Detector Type

Uncooled focal plane array (FPA)

Detector Resolution

384 × 288 pixels

Spectral Range

8~14μm

NETD

30mK

Image Frequency

60Hz

FOV

50.1°×36.3°

Depth of Field

0.5m to infinity

Image Display

Display Screen

4.3inch TFT LCD display, 800*480 pixels

Color Palettes

Black hot, white hot, iron red

Image Modes

Firefighting, Fire, Search and Rescue

Image Adjustment

Automatic

Image Performance

Spatial resolution (IFOV)

2.58 mrad

Image Processing

dual-band image fusion technology

Digital Zooming

2x4x

Image Storage

Memory

Built-in 32G memory

Video Shooting

AVI

Image Storage

IR Only, JPEG

Measurement

Object Temperature Range

-20°C +1200°C, automatic shift

Accuracy

±2℃ or ±2% of the reading

Temperature Measurement Modes

The central point, the highest temperature point, the lowest temperature point

Temperature Measurement Correction

Automatic/Manual

Power

Battery Type

Rechargeable Li-ion battery

Battery capacity

4500mAh

Battery operating time

More than 4 hours

Charging Time

Fully charged within 3 hours

Power Management

Automatic shutdown and sleep mode

General

Camera size

W145*D125*H270mm

Camera weight incl battery

≤1.3Kg

Compass

Yes

Laser Ranging

Yes

Wi-Fi

Built-in Wi-Fi module, can transmit wireless video

Data Interface

USB Type C for image/video transmission

Environment & Certifications

Operating Temperature Range

-10℃~+50

+80: 30 min/  +120:10 min/  +260:5 min

Storage Temperature Range

-30℃~+60

Relative Humidity

95% relative humidity 25°C to 40°C

Encapsulation

IP67

Vibration

2.5g, IEC60068-2-6

Shock

25g, IEC60068-2-29

Drop

1m

Performance

GA/T635-2006

Safety

GB4943.1-2011

EMC

CE Certified

RoHS

Compliance

Laser

IEC60825-1-2014
