Handheld Thermal Imaging Camera
Model: SV-TH2D
SV-HT2D is designed for temperature measurement to find invisible faults.
It has a 256 × 192 resolution thermal detector and a 2 MP optical detector. The thermography ranges from -20°C to 550°C (-4°F to 1022°F), which meets most situations. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety.
The device is mainly applied to various industries, such as building, HVAC, and auto industries.
- Thermal resolution: 256 × 192 (49,152 pixels)
- NETD: < 40 mK (@ 25°C, F# = 1.0)
- Temperature measurement range : -20°C to 550°C (-4°F to 1022°F）
- Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
- Measurement presets: Center spot, Hot spot, Cold spot, User Preset Point
- 25 Hz image frequency
- 2” LCD screen display
- Up to 6 hours continuous running
|
IR Resolution |
256 × 192 (49,152 pixels) |
|
Pixel Pitch |
12 μm |
|
Spectral Range |
8 to 14 μm |
|
NETD |
< 40 mK (@ 25°C), F# = 1.0 |
|
Focal Length |
3.6 mm |
|
Focus |
Fixed |
|
FOV (Field of View) |
37.2° × 50.0° |
|
IFOV (Spatial Resolution) |
3.3 mrad |
|
Image Frequency |
25 Hz |
|
F-number |
F1.0 |
|
Min. Focusing Distance |
0.3 m (0.98 ft) |
|
Focal Length |
2 mm |
|
FOV (Field of View) |
55°× 42° |
|
Picture Resolution |
1600 × 1200 (2 MP) |
|
Display |
240 × 320 Resolution, 3.2” LCD Screen |
|

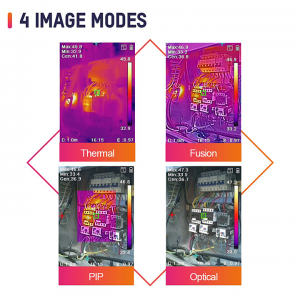

Image Modes |
Thermal/Optical/Fusion/PIP |
|
Color Palettes |
White Hot, Black Hot, Rainbow, Ironbow |
|
Fusion |
Thermal Picture and Optical Picture Combined |
|
PIP |
Thermal Picture in Optical Picture |
|
Object Temperature Range |
-20°C to 550°C (-4°F to 1022°F) |
|
Accuracy |
Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
|
Measurement Presets |
Center Spot, Hot Spot, Cold Spot, Point Presets, Off |
|
High-Temperature Alarm |
Audible and Visual Warning |
|
Storage Media |
EMMC (16 GB) |
|
Image Storage Capacity |
90,000 Images |
|
Image File Format |
JPEG with Measurement Data Included |
|
LED Light |
Yes |
|
Wi-Fi |
802.11 b/g/n (2.4 GHz) |
|
UVC Cast Screen |
Yes |
|
Level/Span |
Auto/Manual |
|
Power Supply |
3.7 VDC/0.5 A |
|
Power Consumption |
1.8 W |
|
Battery Type |
Rechargeable Li-ion Battery |
|
Battery Operating Time |
6 Hours Continuous Running |
|
Battery Charging Time |
3 Hours |
|
Menu language |
21 Languages |
|
Working Temperature Range |
-10°C to 50°C (14°F to 122°F) |
|
Protection level |
IP54 |
|
Drop Test Height |
2 m (6.56 ft) |
|
Weight |
Approx. 380 g (0.84 lb) |
|
Dimension |
221.7 mm × 73.5 mm × 80.5 mm (8.73” × 2.89” × 3.17”) |
|
Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
|
Tripod Mounting |
UNC ¼”-20 |
