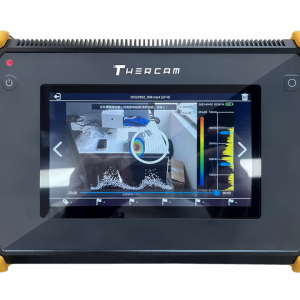

Acoustic Imaging Cameras
Model: SV-AIH2612/SV-AIH2613/SV-AIH2622
TherCam SV-AIH26xx Industrial Acoustic Imager is easy to operate and can be used quickly. The device adopts a sturdy and durable aluminum alloy shell and can adapt to complex and changeable working environments. Real-time sound image display, helping the detection of pressurized or vacuum leaks significantly faster than other previous methods.
SV-AIH26xx only needs to adjust two parameters of the test frequency range and the dynamic test range to meet the vast majority of test requirements.
The device supports camera mode, video mode, and flexible on-site data recording. The large-capacity TF data storage card can be expanded, and the test results can be quickly exported and reported.
It can help enterprises to reduce losses caused by gas leakage, partial discharge, and other accidents.
High-performance microphones for efficient detection
128 digital MEMS microphones can provide exceptionally high sensitivity, sound resolution and detection accuracy, real-time audio-visual display, anti-jamming, and help detection.
Leakage assessment
By activating the leak measurement function, the camera continuously displays the number of leaks and losses as well as the level of loss.
PD detection & PD type identification
Partial discharges can be detected before more serious faults would occur, even before a thermal camera would detect them.
Analytics and reports
Template-based processing and recording of data, waveforms, spectra and spectrograms are supported by TherCam report analysis tool software, generating ISO 50001-compliant, editable protocols in Excel format.
|
Microphone array |
128 channels MEMS microphone, Structural vibration monitoring and localization |
|
Effective Test Bandwidth |
2kHz-48kHz |
|
Dynamic range |
0.5dB-12dB up to110 dB |
|
Test sound pressure level range |
25.7-132.5dBA |
|
Auto max/min dB gain |
User-settable, minimum test bandwidth 1kHz |
|
Number of digits |
24bit |
|
Sound image FOV |
62° |
|
Sound image frame rate |
At least 25 FPS |
|
Leak detection rate |
10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s |
|
Detect distances |
0.3m-120m |
|
Camera FOV |
62° 2x Zoom in |
|
Camera focal length |
3.04mm fixed focal length |
|
Camera pixel |
8 million pixel |
|
Resolution |
1024*600(614400 pixels) |
|
Size |
7 inch |
|
Touch screen |
Capacitive touch screen |
|
Brightness |
Adjustable |
|
Photo notes |
Up to 5 photos notes for reference |
|
Source |
Show single or multiple sources |
|
Standard palettes |
3: Grayscale, Ironbow, Blue-Red |
|
Playback function |
View photos, videos anytime, and add notes or tags |
|
Internal storage |
About 8G |
|
External storage |
TF memory card, at least 64G, expandable to 256G |
|
Data storage format |
.jpg(picture), .mp4(video) and .wav(recording) |
|
Video length |
5 minutes |
|
Digital export |
TF card |
|
Battery capacity |
1x6600mAH@7.2V Rechargeable battery and 1×external battery package, continuous |
|
Battery life |
4+ hours operation time |
|
Charger |
USB Type-C port, USB PD protocol supported, 15W |
|
Power consumption |
15W for battery charge; 29W for maximum power consumption |
|
Energy management |
Sleep/Auto power off modes |
|
USB 3.0 Type-C USB host port |
|
3.5mm headphone socket |
|
Operating environment |
-20℃ - +50℃,10%-95% no condensation |
|
Storage temperature |
-20℃ - +40℃ |
|
Charging temperature |
10℃ - +45℃ |
|
Ingress Protection (IP) |
IP54 |
|
Size |
272mmx174mmx42mm |
|
Weight |
1.7kg |
|
Warranty |
2 years |
|
Self-diagnostic Notification |
Array-health test function to identify when microphone array needs attention |
|
System |
Linux system |
|
Certification |
CE,FCC,RoHS-compliant, MSDS, CNEX, ATEX(under qualification.) |
|
English, French, Chinese, German, Italian, Japanese, Korea, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish |
|
Report types |
Gas/Electricity, ISO 50001-compliant |
|
Analysis |
Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
